The Stage

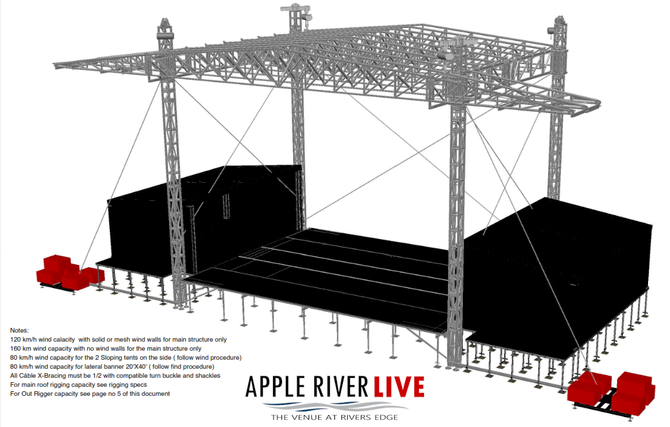

STAGE  SPECS:

  •  Main Stage floor 53' 4" wide x 40' 3" deep x 5' 0" to 8’ 8" high.
  • 20' side stage avail. each side
  • Overall size 45' 10" deep x 56' 5" wide (or 96' 4" w/side stages)
  • Clearance to roof truss 39' 4"
  • Clearance to roof 42' 4"
  •  Sound wing/outriggers 20' 6" wide x 44' 4" high
  •  Floor load bearing 150 PSF
  •  Design windspeed w/sidewalls 50mph/80 km/h, 75mph/120 km/h without sidewalls

POWER SPECS:

  • 3) 400 amp panels for stage
  • 4+) 50 amp shorepower - buses

VIDEO SPECS:

  • Main Stage - appx 50' wide x 18' tall video screen
  • Side stages - appx 20' wide by 15' tall video screens
  • All video screens can be custom configured for size

 ENTERTAINER AMENITIES:

  • Permanent building near stage w/artist Green Rooms
  • Artist Merch. space avail. in same building
  • Appx 4 artists bus spaces between sage and Green Rooms - ea. w/50 shore power
  • Artists have access to appx 7,000 sqft. Rivers Edge Event center with riverside patio and outdoor bar for artist/VIP activities
